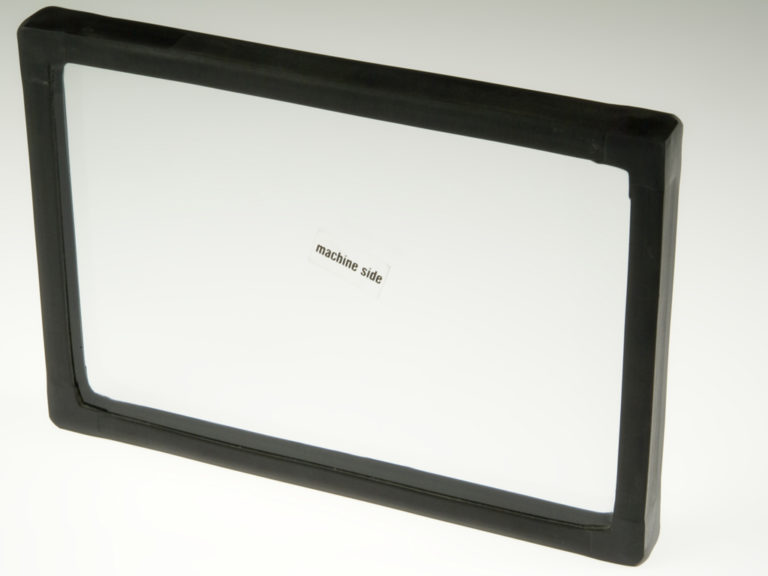

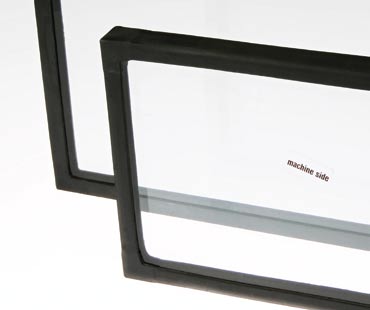

Siplex Shield laminated safety glass not only has the familiar advantages of Siplex® for operator protection, but also has a special additional benefit: it deflects a large proportion of the kinetic energy which occurs. Siplex® Shield is available in different versions, depending on the required field of application.
| Type | 6.03.07 | 6.03.10 | 6.03.13 | 6.03.20 | 6.03.14 | 6.03.16 | 6.03.25 | 6.03.19 | 6.03.21 | 6.03.24 | 6.03.34 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Thickness in mm | 8 | 12 | 14 | 20,5 | 14 | 16 | 21 | 18 | 20 | 25 | 34 |
| Weight in kg/m² | 18 | 25 | 32 | 49 | 27,5 | 30 | 41 | 31 | 33 | 41 | 53 |
| Energy in Joule | 60 | 80 | 115 | 160 | 480 | 514 | 845 | 1116 | 1457 | 2000 | 2500 |
| Sound pressure guideline value (db) | 31 | 31 | 32 | 33 | |||||||
| Max. dimensions | 1200 x 2000 mm | ||||||||||
| Splinter detachment | No | ||||||||||
| Type | 6.04.09 | 6.04.10 | 6.04.12 | 6.04.13 | 6.04.14 | 6.04.15 | 6.04.17 | 6.04.23 | 6.04.25 | 6.04.34 | 6.04.34 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Resistance class | A1 | A2 | A3 | B1 | B2 | B3 | C1 | C2 | C3 | C3 | C3 |
| Thickness in mm | 10 | 13 | 16 | 14 | 18 | 20 | 18 | 20 | 25 | 29 | 34 |
| Weight in kg/m² | 20 | 22 | 27,5 | 25 | 30 | 29 | 31 | 33 | 41 | 50 | 53 |
| Energy in Joule | 320 | 781 | 2000 | 1562 | 2480 | 4000 | 3124 | 4960 | 8000 | 9500 | 13000 |
| Sound pressure guideline value (db) | 31 | 31 | 32 | 32 | 32 | 33 | 33 | 33 | 33 | 33 | 33 |
| Max. dimensions | 1200 x 2000 mm | ||||||||||
| Splinter detachment | No | ||||||||||
| Typ | 6.05.27 | 6.05.27 | 6.05.32 | 6.05.32 | 6.05.32 |
|---|---|---|---|---|---|
| Resistance class | PK1 | PK2 | PK3 | PK4 | PK5 |
| Thickness in mm | 47 | 47 | 47 | 51 | 51 |
| Weight in kg/m² | 85 | 85 | 85 | 90 | 90 |
| Energy in Joule | 10000 | 12000 | 14000 | ||
| Sound pressure guideline value (db) | 33 | ||||
| Max. dimensions | 1200 x 2000 mm | ||||
| Splinter detachment | No | ||||
